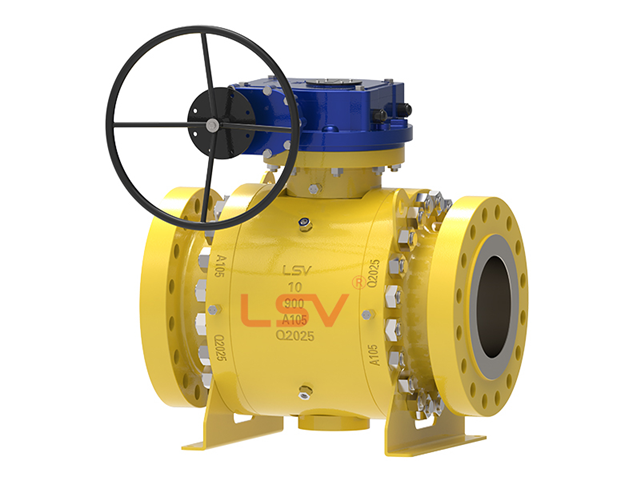

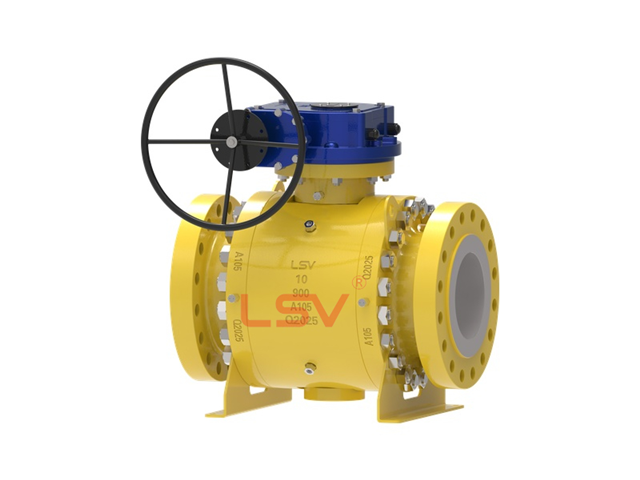

Forged trunnion ball valve

Product details

Side-entry ball valves are manufactured in accordance with API 6D standards. Valves are designed for two or three pieces. with a solid double trunnion configuration and two independent seats for an easy bidirectional sealing, to ensure the greatest level of tightness and reliability under high pressure and temperature conditions in all critical isolation services.

According to the different pipe medium and medium temperature, the selection of materials can be customized, if the pipe medium temperature is high, we can produce metal sealed ball valves to meet the needs of customers.

Forged trunnion ball valve

ball valve length, flange size, ball valve weight

Main connection dimension ASME.B 16.5-2009

Nominal pressure	DN(mm) Nominal diameter	Dimension(mm)															Weight(Kg)
		L		d1		D	D1	D2	b	f	Z-φd	W	H				Weight(Kg)
		RF	BW	全通径 All-diamaeter	缩径 cinkled- diameler	D	D1	D2	b	f	Z-φd	手动	41型	641型	347型	47型	41型	347型
Class 150	1/2	108	40	13	-	90	60.3	34.9	1.6	2	4-16	130	75	200	-	-	2	-
	3/4	17	52	19	-	0	69.9	42.8	13.2		4-16	170	84	205	-	-	2.5	-
	1	27	65	25	-	-	79.4	-	4		4-16	170	90	215	-	-	4.5	-
	11/4	40	78	32	-	115	88.9	835	6.3		4-16	200	107	240	-	-	6	-
	11/2	65	190	38	-	25	98.4	73	179		4-16	250	127	265	-	-	7.5	-
	2	78	216	51	64	150	20.7	92	9.5		4-19	250	140	275	-	-	9.5	-
	21/2	90	241	64	76	180	139.7l	104 g	22.7		4-19	350	164	380	-	-	14	-
	3	203	283	76	2	190	52.4	127	24.3		4-19	350	177	390	-	-	19	-
	4	229	305	102	27	230	190.5	1572	243		8-19	420	206	415	-	416	30	-
	5	356	381	127	52	255	215.9	185.7	24.3		8-22	700	292	545	-	542	58	-
	6	394	457	152	203	280	241.3	215.9	25.9		8-22	1000	320	575	305	572	88	117
	8	457	521	203	254	345	298.5	269.9	29		8-22	1300	365	600	398	736	50	185
	10	533	559	254	305	405	362	23.8	306		12-25	-	-	-	495	890	-	245
	12	610	635	305	337	485	431.8	381	322		12-25	-	-	-	580	910	-	395
	14	686	762	337	337	535	476.3	412.8	35.4		12-29	-	-	-	625	20	-	516
	16	762	838	387	387	595	539.8	469.9	37		16-29	-	-	-	720	1080	-	756
	18	864	914	438	489	635	577.9	533.4	40		16-32	-	-	-	770	120	-	958
	20	914	991	489	594	700	635	5842	43.3		20-32	-	-	-	840	1150	-	1200
	24	1067	1143	594	-	815	749.3	6922	48		20-35	-	-	-	920	1230	-	2100
Class 300	1/2	40	40	3	-	95	66.7	34.9	4.7	2	4-16	130	75	200	-	-	3	-
	3/4	52	52	19	-	115	82.6	42.9	6.3		4-19	70	84	205	-	-	-	-
	1	65	65	25	-	25	88.9	50.8	7.9		4-19	170	90	215	-	-	6	-
	11/4	78	78	32	-	35	98.4	63.5	19.5		4-19	200	7	240	-	-	8	-
	11/2	190	190	38	-	55	14.3	73	21		4-22	250	127	265	-	-	10	-
	2	218	216	51	-	65	127	92	22.7		8-19	250	140	360	-	-	13	-
	21/2	24	241	64	-	90	492	4	25		8-22	50	164	3	-	-	20	-
	3	283	282	76	64	210	168.3	127	29		8-22	350	177	455	-	-	32	-
	4	305	5	2	76	255	200	572	32.2		8-22	420	206	480	-	479	52	-
	5	381	381	127	2	280	235	85.7	35.4		8-22	700	292	645	-	646	82	-
	6	403	457	52	27	320	269.9	215.9	37		12-22	1000	320	665	305	666	115	145
	8	502	521	203	52	380	330.2	269.9	41.7		12-25	1300	365	818	398	814	200	240
	10	568	559	254	203	445	387.4	323.8	48.1		16-29	-	-	-	495	890	-	400
	12	648	635	305	254	520	450.8	381	51.3		16-32	-	-	-	580	910	-	580
	14	762	762	337	305	585	514.4	412.8	54.4		20-32	-	-	-	625	20	-	790
	16	838	838	387	337	650	571.5	469.9	57.6		20-35	-	-	-	720	80	-	940
	18	914	914	432	337	710	628.6	533.4	60.8		24-35	-	-	-	770	1120	-	1200
	20	991	991	483	387	775	685.8	584.2	64		24-35	-	-	-	840	1150	-	1400
	24	1143	1143	591	483	915	812.8	6922	70.3		24-41	-	-	-	920	230	-	2850

Continued form

Nominal pressure	DN(mm) Nominal diameter	Dimension(mm)															Weight(Kg)
		L		d1		D	D1	D2	b	f	Z-φd	W	H				Weight(Kg)
		RF	BW	全通径 All-diamaeter	缩径 cinkled- diameler	D	D1	D2	b	f	Z-φd	手动	41型	641型	347型	647型	41型	347型
Class 600	1/2	65	165	13	-	95	66.7	35	4.3	7	4-16	170	80	200	-	-	5.5	-
	3/4	91	191	19	-	15	82.6	43	15.9		4-19	200	89	205	-	-	-	-
	1	216	216	25	-	25	88.9	51	17.5		4-19	200	95	215	-	-	10	-
	11/4	229	229	32	-	35	98.4	64	20.7		4-19	250	12	240	-	-	15	-
	11/2	241	241	38	-	55	114.3	73	22.3		4-22	50	32	265	-	-	18	-
	2	292	292	51	38	65	127	92	25.4		8-19	350	45	360	-	360	25	-
	21/2	330	330	64	51	90	149.2	105	28.6		8-22	420	69	380	-	379	32	-
	3	356	356	76	64	210	168.3	127	31.8		8-22	20	82	45	-	-	46	-
	4	432	432	2	76	275	215.9	157	38.1		8-25	700	211	480	-	479	75	-
	6	559	559	52	27	355	292.1	216	47.7		12-29	-	-	-	435	666	-	150
	8	660	660	0	52	420	349.2	270	55.6		12-32	-	-	-	30	736	-	350
	10	787	787	248	200	510	431.8	324	63.5		16-35	-	-	-	615	790	-	580
	2	838	838	298	248	560	489	381	66.7		20-35	-	-	-	680	870	-	790
	14	889	889	27	298	605	527	413	69.9		20-38	-	-	-	20	20	-	980
	16	991	991	375	327	685	603.2	470	762		20-41	-	-	-	840	1080	-	1300
	18	1092	1092	432	327	745	654	533	82.6		20-45	-	-	-	890	1120	-	1400
	20	194	194	83	375	815	723.9	584	88.9		24-45	-	-	-	25	1200	-	2100
	24	1397	1397	591	483	940	838,2	692	1.6		24-51	-	-	-	980	295	-	3400
Class 900	2	368	368	47	-	215	165.1	92	38.1	7	8-25	-	-	-	-	380	-
	21/2	419	419	57	47	245	190.5	105	41.3		8-29	-	-	-	-	-	-
	3	381	381	73	57	240	190.5	127	38.1		8-25	-	-	-	-	480	-
	4	457	457	98	73	290	235	157	44.5		8-32	-	-	-	290	532	-	160
	6	610	610	46	121	380	317.5	216	55.6		12-32	-	-	-	35	703	-	220
	8	737	737	190	46	470	393.7	270	63.5		12-38	-	-	-	530	750	-	450
	10	838	838	238	190	545	469.9	324	69.9		16-38	-	-	-	615	820	-	760
	12	965	965	282	238	610	533.4381	381	79.4		20-38	-	-	-	680	900	-	1050
