Product details

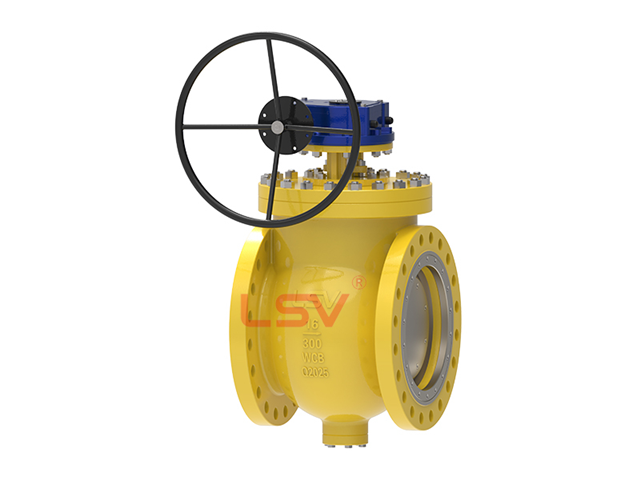

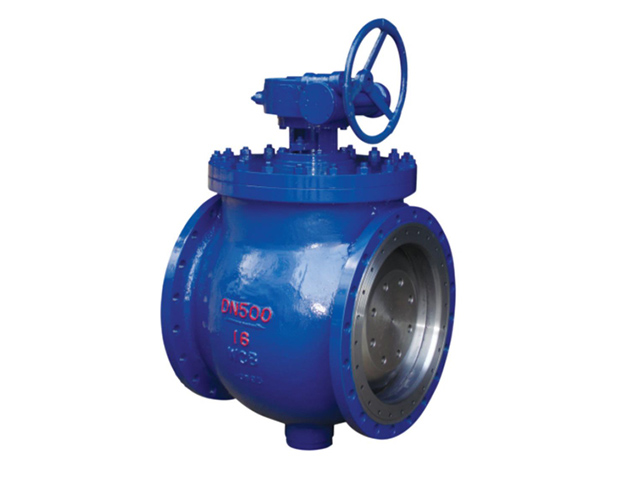

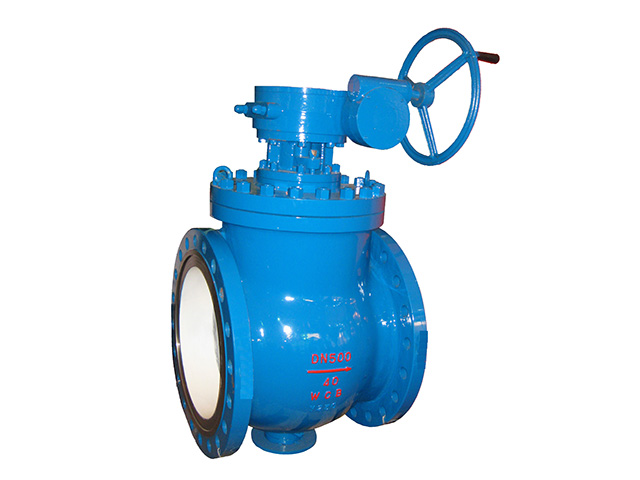

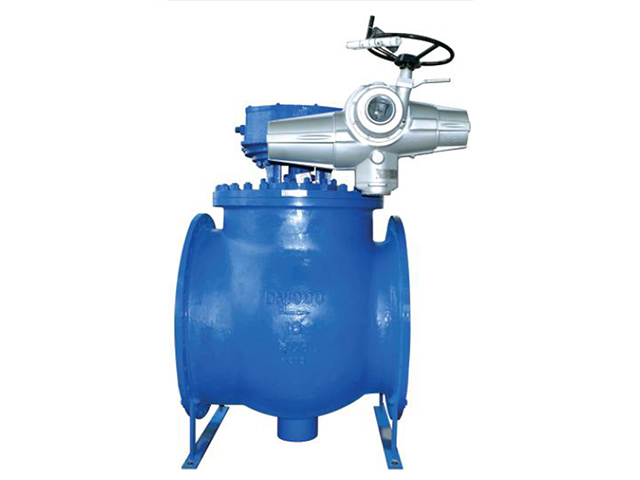

The upper eccentric half ball valve is a new product successfully researched and developed by digesting and absorbing domestic and foreign advanced technologies;it is an innovative product that has flled in the blank of domestic valve category. It enjoys the functions and strengths of side eccentric half ball valve; the greatest feature lies in the on-line valve inspection and maintenance upon pressure relief of tooling unit system; during the inspection and maintenance, the operator only needs to open the valve cover and hoist the spherical crown and support body; it is not needed to dismantle the whole valve from the pipe. According to the user's actual demand, various alloy materials are replaced for the sphere; the double metal seal ring is adopted for different industrial departments with wear resistance, corrosion resistance, high temperature resistance and strict sealing requirements.
Ordering notice：
1.The upper hard (soft) sealing eccentic half ball valve has dfferent temperature levels and medium; during the goods ordering, the demander must mark the utization temperature and medium.
Remark: In case of rather high temperature, the materals of valve saling components must be replaced.
2 Once the demander needs the hard (soft) sealing eccentic half ball valve beyond the existing operation methods, specilication, overall dimension and mateials socope, the plant can design and manufacture independently; however, i must mark in the ordening contrac.
