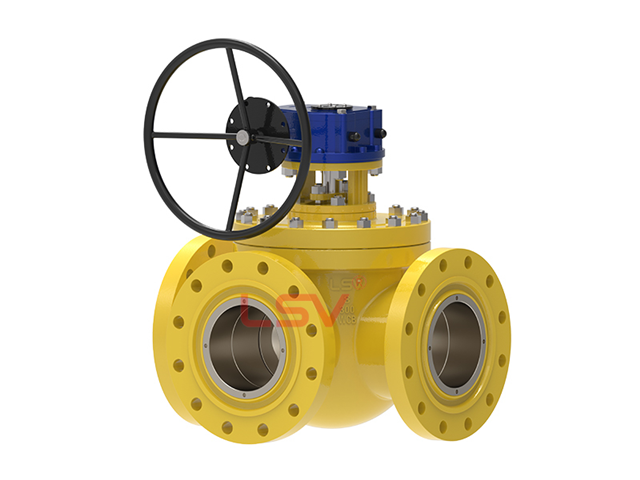

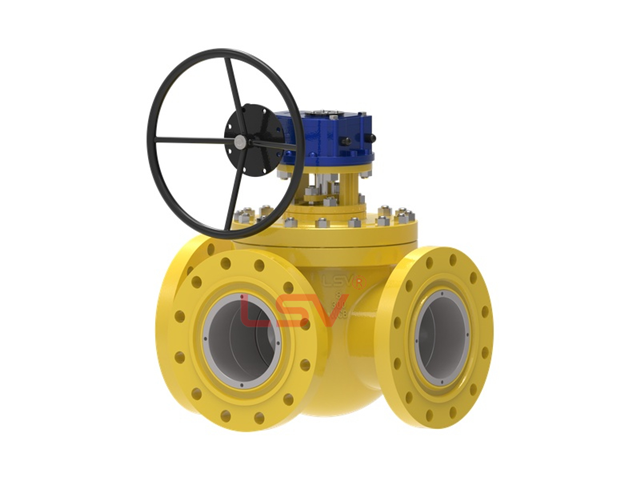

T Type three-way ball valve

Category:Three-way Ball Valve

Temperature Range: -50°F to 390°F (-46 to 200°C)
Size: NPS 1/2-8 (DN 15-200)
Pressure Rating: ASME 150LB - ASME 600LB
Face-To-Face: As per API 6D standard
End Connections: RF as per B16.5 &B16.47
Body Design: Cast or forged bolt two piece type

Product details

T-type three-way ball valve is manufactured according to API 6D standard. The valve adopts forged bolt two-piece split design, which is suitable for small diameter ball valve.

The upstream flow of pressure pushes the free-floating ball against the downstream seat, and the resulting pressure provides a sealing solution.

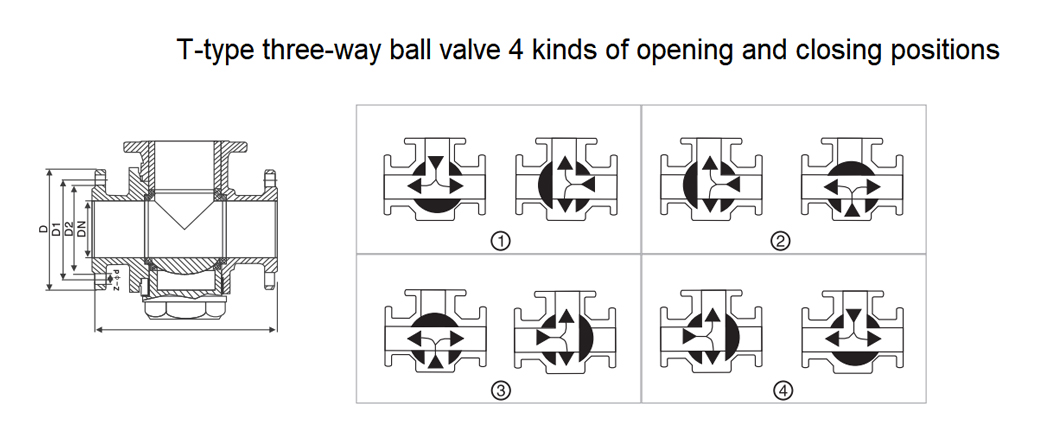

The valve stem is connected to the top of the ball, allowing the valve to move in a circle of 360°, and the ball valve movement is generally 90°, which leads to four flow directions of the medium.

According to the different pipe media and media temperature, the selection of materials can be customized, if the pipe media temperature is high, we can produce different sealing rings of ball valves to meet the needs of customers.
